Unity-URP笔记¶

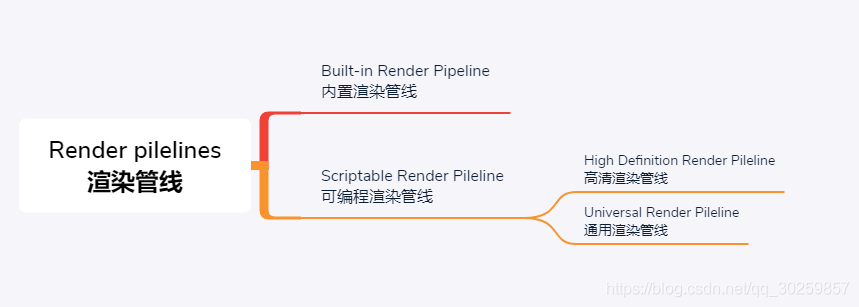

SRP/URP/HDRP之间的关系¶

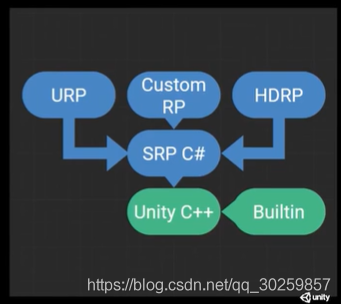

SRP是什么？¶

SRP全称为Scriptable Render Pipeline（可编程渲染管线/脚本化渲染管线），是Unity提供的新渲染系统，可以在Unity通过C#脚本调用一系列API配置和执行渲染命令的方式来实现渲染流程，SRP将这些命令传递给Unity底层图形体系结构，然后再将指令发送给图形API。

说白了就是我们可以用SRP的API来创建自定义的渲染管线，可用来调整渲染流程或修改或增加功能。

它主要把渲染管线拆分成二层：

• 一层是比较底层的渲染API层，像OpenGL，D3D等相关的都封装起来。

• 另一层是渲染管线上层，上层代码使用C#来编写。在C#这层不需要关注底层在不同平台上渲染API的差别，也不需要关注具体如何做一个Draw Call

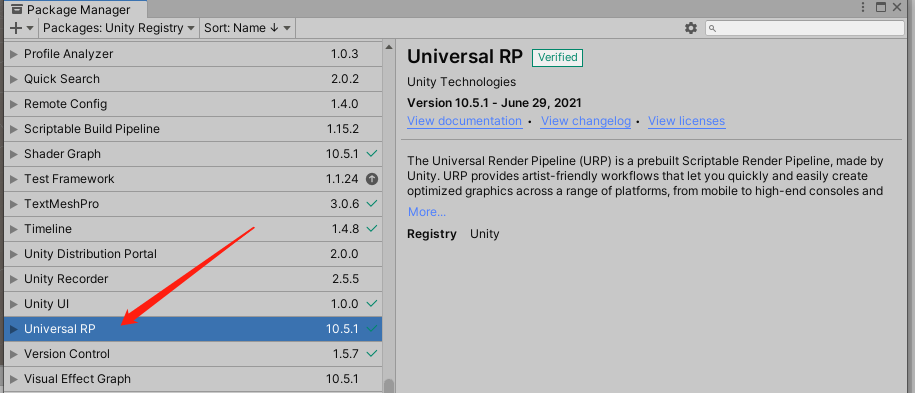

URP是什么？¶

它的全称为Universal Render Pipeline(通用渲染管线)，简称 Universal RP, 它是Unity官方基于SRP提供的模板，它的前身是 LWRP(Lightweight RP 即轻量级渲染管线), 在2019.3开始改名为URP，它涵盖了范围广泛的不同平台，是针对跨平台开发而构建的，性能比内置管线要好，另外可以进行自定义，实现不同风格的渲染，通用渲染管线未来将成为在Unity中进行渲染的基础 。

平台范围：可以在Unity当前支持的任何平台上使用

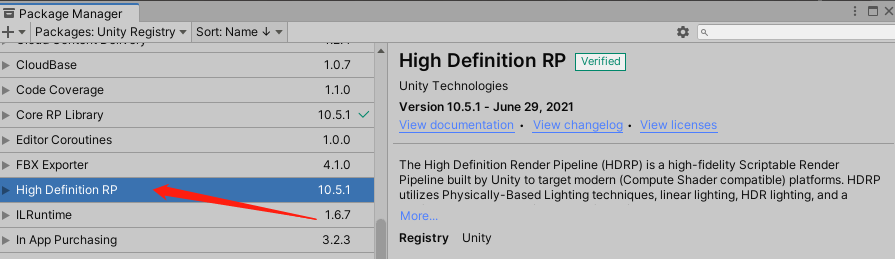

HDRP是什么？¶

它的全称为High Definition Render Pipeline（高清晰度渲染管线），它也是Unity官方基于SRP提供的模板，它更多是针对高端设备，如游戏主机和高端台式机，它更关注于真实感图形和渲染，该管线仅于以下平台兼容：

• Windows和Windows Store，带有DirectX 11或DirectX 12和Shader Model 5.0
• 现代游戏机（Sony PS4和Microsoft Xbox One）
• 使用金属图形的MacOS（最低版本10.13）
• 具有Vulkan的Linux和Windows平台 在此文章对HDRP不过多描述。

为什么诞生SRP？¶

• 内置渲染管线的缺陷

  • 定制性差：过去，Unity有一套内置渲染管线，渲染管线全部写在引擎的源码里。大家基本上不能改动，除非是买了Unity源码客户，当然大部分开发者是不会去改源码，所以过去的管线对开发者来说，很难进行定制。
  • 代码脓肿，效果效率无法做到最佳：内置渲染管线在一个渲染管线里面支持所有的二十多个平台，包括非常高端的PC平台，也包括非常低端的平台，很老的手机也要支持，所以代码越来越浓肿，很难做到使效率和效果做到最佳。

  • 目的

  • 为了解决仅有一个默认渲染管线，造成的可配置型、可发现性、灵活性等问题。决定在C++端保留一个非常小的渲染内核，让C#端可以通过API暴露出更多的选择性，也就是说，Unity会提供一系列的C# API以及内置渲染管线的C#实现；这样一来，一方面可以保证C++端的代码都能严格通过各种白盒测试，另一方面C#端代码就可以在实际项目中调整。

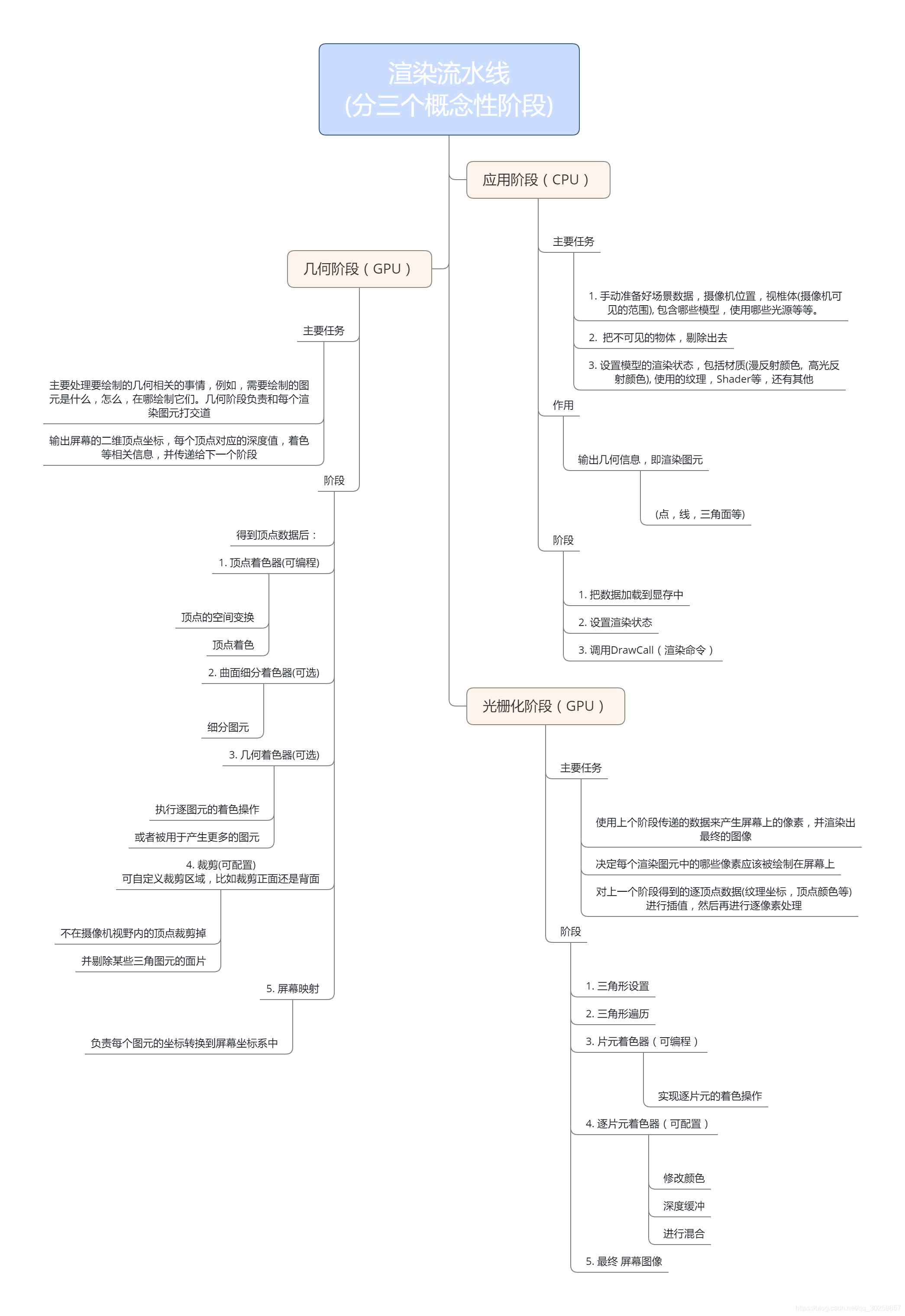

渲染流水线图：

ref: https://blog.csdn.net/qq_30259857/article/details/108318528
ref: https://blog.csdn.net/qq_33700123/article/details/114092028

SRPBatcher¶

详解参考官方文档: 可编程渲染管线 SRP Batcher

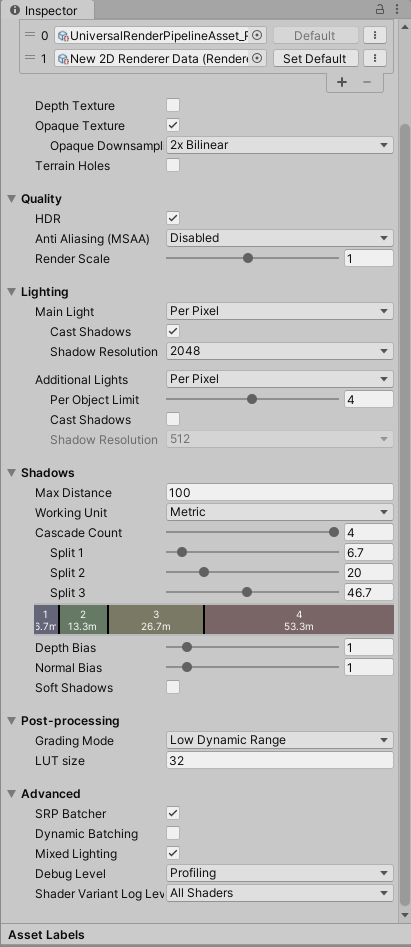

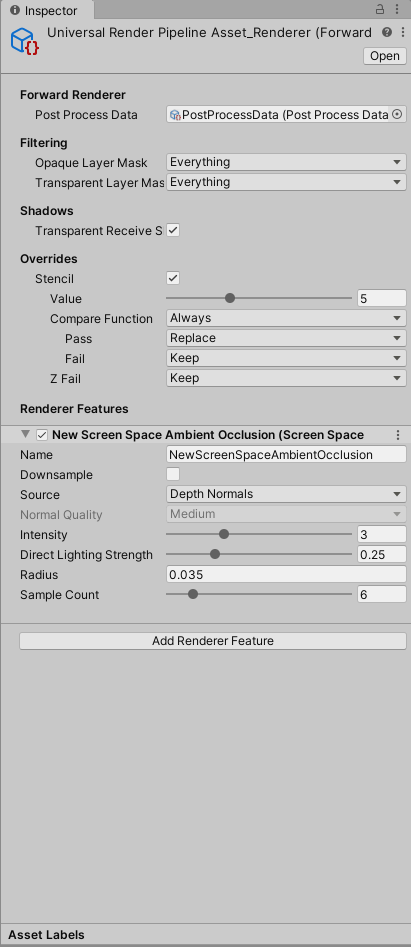

URP 面板详解¶

面板详解: 通用渲染管线(URP)_学习笔记

UniversalRenderPipeline 源码分析¶

UnityEngine.Rendering.Universal.UniversalRenderPipeline public sealed partial class UniversalRenderPipeline : RenderPipeline 不包括XR，SceneView,Camera Preview，只是前向渲染的分析；不包括RenderingMode.Deferred的分析

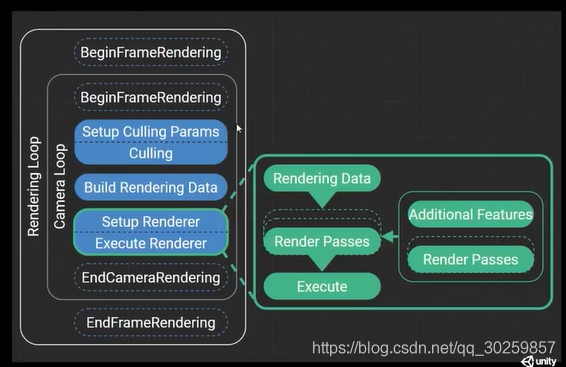

Render分析¶

protected override void Render(ScriptableRenderContext renderContext, Camera[] cameras)的执行流程

• BeginFrameRendering(renderContext, cameras);
• 配置GraphicsSettings
• 设置Shader全局变量 SetupPerFrameShaderConstants();
• SortCameras(cameras); // 根据camera.depth排序
• RenderCameraStack(renderContext, camera);
  • UpdateVolumeFramework(baseCamera, baseCameraAdditionalData);
  • BeginCameraRendering(renderContext, camera);
  • UpdateVolumeFramework(camera, null);
  • RenderSingleCamera(renderContext, camera);
  • EndCameraRendering(renderContext, camera);
  • EndFrameRendering(renderContext, cameras);

            protected override void Render(ScriptableRenderContext renderContext, Camera[] cameras)
            {
                BeginFrameRendering(renderContext, cameras);
                GraphicsSettings.lightsUseLinearIntensity = (QualitySettings.activeColorSpace == ColorSpace.Linear);
                GraphicsSettings.useScriptableRenderPipelineBatching = asset.useSRPBatcher;
                SetupPerFrameShaderConstants();
                SortCameras(cameras);
                for (int i = 0; i < cameras.Length; ++i){
                    var camera = cameras[i];
                    if (IsGameCamera(camera))
                    {
                        RenderCameraStack(renderContext, camera);
                    }
                    else
                    {
                        BeginCameraRendering(renderContext, camera);
                        UpdateVolumeFramework(camera, null);
                        RenderSingleCamera(renderContext, camera);
                        EndCameraRendering(renderContext, camera);
                    }
                }
                EndFrameRendering(renderContext, cameras);
            }
            public static void RenderSingleCamera(ScriptableRenderContext context, Camera camera)
            {
                UniversalAdditionalCameraData additionalCameraData = null;
                if (IsGameCamera(camera))
                    camera.gameObject.TryGetComponent(out additionalCameraData);
                InitializeCameraData(camera, additionalCameraData, true, out var cameraData);
                RenderSingleCamera(context, cameraData, cameraData.postProcessEnabled);
            }
            /// <summary>
            /// Renders a single camera. This method will do culling, setup and execution of the renderer.
            /// </summary>
            /// <param name="context">Render context used to record commands during execution.</param>
            /// <param name="cameraData">Camera rendering data. This might contain data inherited from a base camera.</param>
            /// <param name="anyPostProcessingEnabled">True if at least one camera has post-processing enabled in the stack, false otherwise.</param>
            static void RenderSingleCamera(ScriptableRenderContext context, CameraData cameraData, bool anyPostProcessingEnabled)
            {
                Camera camera = cameraData.camera;
                var renderer = cameraData.renderer;
                if (!TryGetCullingParameters(cameraData, out var cullingParameters))
                    return;
                ScriptableRenderer.current = renderer;
                bool isSceneViewCamera = cameraData.isSceneViewCamera;
                CommandBuffer cmd = CommandBufferPool.Get();
                    renderer.Clear(cameraData.renderType);
                    renderer.SetupCullingParameters(ref cullingParameters, ref cameraData);
                    context.ExecuteCommandBuffer(cmd); // Send all the commands enqueued so far in the CommandBuffer cmd, to the ScriptableRenderContext context
                    cmd.Clear();
                    var cullResults = context.Cull(ref cullingParameters);
                    InitializeRenderingData(asset, ref cameraData, ref cullResults, anyPostProcessingEnabled, out var renderingData);
                    renderer.Setup(context, ref renderingData);
                    renderer.Execute(context, ref renderingData);
                context.ExecuteCommandBuffer(cmd); // Sends to ScriptableRenderContext all the commands enqueued since cmd.Clear, i.e the "EndSample" command
                CommandBufferPool.Release(cmd);
                    context.Submit(); // Actually execute the commands that we previously sent to the ScriptableRenderContext context
            }

            /// <summary>
            // Renders a camera stack. This method calls RenderSingleCamera for each valid camera in the stack.
            // The last camera resolves the final target to screen.
            /// </summary>
            /// <param name="context">Render context used to record commands during execution.</param>
            /// <param name="camera">Camera to render.</param>
            static void RenderCameraStack(ScriptableRenderContext context, Camera baseCamera)
            {
                baseCamera.TryGetComponent<UniversalAdditionalCameraData>(out var baseCameraAdditionalData);
                // Overlay cameras will be rendered stacked while rendering base cameras
                if (baseCameraAdditionalData != null && baseCameraAdditionalData.renderType == CameraRenderType.Overlay)
                    return;
                // renderer contains a stack if it has additional data and the renderer supports stacking
                var renderer = baseCameraAdditionalData?.scriptableRenderer;
                bool supportsCameraStacking = renderer != null && renderer.supportedRenderingFeatures.cameraStacking;
                List<Camera> cameraStack = (supportsCameraStacking) ? baseCameraAdditionalData?.cameraStack : null;
                bool anyPostProcessingEnabled = baseCameraAdditionalData != null && baseCameraAdditionalData.renderPostProcessing;
                // We need to know the last active camera in the stack to be able to resolve
                // rendering to screen when rendering it. The last camera in the stack is not
                // necessarily the last active one as it users might disable it.
                int lastActiveOverlayCameraIndex = -1;
                if (cameraStack != null)
                {
                    var baseCameraRendererType = baseCameraAdditionalData?.scriptableRenderer.GetType();
                    baseCameraAdditionalData.UpdateCameraStack();
                }
                // Post-processing not supported in GLES2.
                anyPostProcessingEnabled &= SystemInfo.graphicsDeviceType != GraphicsDeviceType.OpenGLES2;
                bool isStackedRendering = lastActiveOverlayCameraIndex != -1;
                // Update volumeframework before initializing additional camera data
                UpdateVolumeFramework(baseCamera, baseCameraAdditionalData);
                InitializeCameraData(baseCamera, baseCameraAdditionalData, !isStackedRendering, out var baseCameraData);
                BeginCameraRendering(context, baseCamera);
                RenderSingleCamera(context, baseCameraData, anyPostProcessingEnabled);
                EndCameraRendering(context, baseCamera);
                if (isStackedRendering)
                {
                    for (int i = 0; i < cameraStack.Count; ++i)
                    {
                        var currCamera = cameraStack[i];
                        if (!currCamera.isActiveAndEnabled)
                            continue;
                        currCamera.TryGetComponent<UniversalAdditionalCameraData>(out var currCameraData);
                        // Camera is overlay and enabled
                        // Copy base settings from base camera data and initialize initialize remaining specific settings for this camera type.
                        CameraData overlayCameraData = baseCameraData;
                        bool lastCamera = i == lastActiveOverlayCameraIndex;
                        BeginCameraRendering(context, currCamera);
                        UpdateVolumeFramework(currCamera, currCameraData);
                        InitializeAdditionalCameraData(currCamera, currCameraData, lastCamera, ref overlayCameraData);
                        RenderSingleCamera(context, overlayCameraData, anyPostProcessingEnabled);
                        EndCameraRendering(context, currCamera);
                    }
                }
            }


    如果Unity版本高UNITY_2021_1_OR_NEWER宏生效则BeginContextRendering(renderContext, cameras);替换BeginFrameRendering(renderContext, cameras);，EndContextRendering(renderContext, cameras);替换EndFrameRendering(renderContext, cameras);

RenderSingleCamera 分析¶

static void RenderSingleCamera(ScriptableRenderContext context, CameraData cameraData, bool anyPostProcessingEnabled)的执行流程
ScriptableRender renderer= cameraData.renderer;

• 剔除操作，返回一个剔除参数（被摄象机渲染的游戏物体和光照的列表 ）TryGetCullingParameters(cameraData, out var cullingParameters) > static bool TryGetCullingParameters(CameraData cameraData, out ScriptableCullingParameters cullingParams)

  • cameraData.camera.TryGetCullingParameters(false, out cullingParams)
  • 修改剔除参数（是否投射阴影，最大灯光数量，阴影距离shadowDistance，）renderer.SetupCullingParameters(ref cullingParameters, ref cameraData);

    public virtual void SetupCullingParameters(ref ScriptableCullingParameters cullingParameters, ref CameraData cameraData)

  • context.ExecuteCommandBuffer(cmd);

    public void ExecuteCommandBuffer(CommandBuffer commandBuffer);

  • 根据剔除参数执行剔除，获得剔除结果 var cullResults = context.Cull(ref cullingParameters);

    public CullingResults Cull(ref ScriptableCullingParameters parameters)

  • 初始化渲染数据RenderingData（灯光数据，阴影数据，后处理数据,是否动态批处理，是否启用后处理，相机数据，剔除结果数据）InitializeRenderingData(asset, ref cameraData, ref cullResults, anyPostProcessingEnabled, out var renderingData);

    static void InitializeRenderingData(UniversalRenderPipelineAsset settings, ref CameraData cameraData, ref CullingResults cullResults, bool anyPostProcessingEnabled, out RenderingData renderingData)

• renderer.Setup(context, ref renderingData) > public abstract void Setup(ScriptableRenderContext context, ref RenderingData renderingData);

  • 如果获取深度

    ConfigureCameraTarget(BuiltinRenderTextureType.CameraTarget, BuiltinRenderTextureType.CameraTarget);
    AddRenderPasses(ref renderingData);
    EnqueuePass(m_RenderOpaqueForwardPass);

    // TODO: Do we need to inject transparents and skybox when rendering depth only camera? They don't  write to depth.
    EnqueuePass(m_DrawSkyboxPass);
    EnqueuePass(m_RenderTransparentForwardPass);


  • ConfigureCameraColorTarget(activeColorRenderTargetId);
  • AddRenderPasses(ref renderingData); // rendererFeatures AddRenderPasses
  • CreateCameraRenderTarget(context, ref cameraTargetDescriptor, createColorTexture, createDepthTexture); // CameraRenderType.Base
  • EnqueuePass(m_MainLightShadowCasterPass);
  • EnqueuePass(m_AdditionalLightsShadowCasterPass);
  • EnqueuePass(m_DepthNormalPrepass);或者 EnqueuePass(m_DepthPrepass);
  • EnqueuePass(m_ColorGradingLutPass);
  • EnqueuePass(m_RenderOpaqueForwardPass);
  • EnqueuePass(m_DrawSkyboxPass);
  • EnqueuePass(m_CopyDepthPass);
  • EnqueuePass(m_CopyColorPass);
  • EnqueuePass(m_TransparentSettingsPass);
  • EnqueuePass(m_RenderTransparentForwardPass);
  • EnqueuePass(m_OnRenderObjectCallbackPass);
  • EnqueuePass(m_PostProcessPass);
  • EnqueuePass(m_FinalPostProcessPass);
  • EnqueuePass(m_CapturePass);
  • EnqueuePass(m_FinalBlitPass);
  • EnqueuePass(m_PostProcessPass);

• renderer.Execute(context, ref renderingData); > public void Execute(ScriptableRenderContext context, ref RenderingData renderingData) > ref CameraData cameraData = ref renderingData.cameraData;

  • InternalStartRendering(context, ref renderingData);
  • SetPerCameraShaderVariables(cmd, ref cameraData);
  • SetShaderTimeValues(cmd, time, deltaTime, smoothDeltaTime);
  • context.ExecuteCommandBuffer(cmd);
  • SortStable(m_ActiveRenderPassQueue); // Sort the render pass queue
  • SetupLights(context, ref renderingData);

  • 执行所有Pass的Execute方法 ExecuteBlock(RenderPassBlock.BeforeRendering, in renderBlocks, context, ref renderingData); >// Before Render Block. This render blocks always execute in mono rendering.
    >// Camera is not setup. Lights are not setup.
    >// Used to render input textures like shadowmaps.

        void ExecuteBlock(int blockIndex, in RenderBlocks renderBlocks,ScriptableRenderContext context, ref RenderingData renderingData, bool submit = false)
        {   foreach (int currIndex in renderBlocks.GetRange(blockIndex)) //循环所有Pass
            {var renderPass = m_ActiveRenderPassQueue[currIndex];
                ExecuteRenderPass(context, renderPass, ref renderingData);}
            if (submit) context.Submit();}
        void ExecuteRenderPass(ScriptableRenderContext context, ScriptableRenderPass renderPass, ref    RenderingData renderingData){
            using var profScope = new ProfilingScope(null, renderPass.profilingSampler);
            ref CameraData cameraData = ref renderingData.cameraData;
            CommandBuffer cmd = CommandBufferPool.Get();
            // Track CPU only as GPU markers for this scope were "too noisy".
            using (new ProfilingScope(cmd, Profiling.RenderPass.configure))
            {   renderPass.Configure(cmd, cameraData.cameraTargetDescriptor); //配置Pass数据
                SetRenderPassAttachments(cmd, renderPass, ref cameraData);}
            // Also, we execute the commands recorded at this point to ensure SetRenderTarget is called     before RenderPass.Execute
            context.ExecuteCommandBuffer(cmd);
            CommandBufferPool.Release(cmd);
            renderPass.Execute(context, ref renderingData); //执行对应Pass的Execute
        }


  • context.SetupCameraProperties(camera); >// This is still required because of the following reasons: >// - Camera billboard properties. >// - Camera frustum planes: unity_CameraWorldClipPlanes[6] >// - _ProjectionParams.x logic is deep inside GfxDevice >// NOTE: The only reason we have to call this here and not at the beginning (before shadows) >// is because this need to be called for each eye in multi pass VR. >// The side effect is that this will override some shader properties we already setup and we will have to >// reset them.

  • SetCameraMatrices(cmd, ref cameraData, true);

  • context.ExecuteCommandBuffer(cmd);
  • context.DrawWireOverlay(camera);
  • InternalFinishRendering(context, cameraData.resolveFinalTarget); > context.ExecuteCommandBuffer(cmd);
  • context.ExecuteCommandBuffer(cmd);
  • context.ExecuteCommandBuffer(cmd);
  • context.Submit();

URP笔记¶

URP LightModeTags 说明¶

Tags{“LightMode” = “XXX”}

• UniversalForward：前向渲染物件之用，SRPDefaultUnlit也用该pass渲染
• ShadowCaster： 投射阴影之用
• DepthOnly：只用来产生深度图
• Mata：来用烘焙光照图之用
• Universal2D ：做2D游戏用的，用来替代前向渲染
• UniversalGBuffer ： 貌似与延迟渲染相关（开发中）, Does GI + emission. All additional lights are done deferred as well as fog
• UniversalForwardOnly:
• NormalsRendering:
• SceneSelectionPass:Scene view outline pass.
• Picking:Scene picking buffer pass
• DepthNormals: 只是用俩产生法线贴图_CameraNormalsTexture
