UnityProfiler使用Android真机连接测试

官方说明：https://docs.unity3d.com/2018.4/Documentation/Manual/profiler-profiling-applications.html

使用usb连接

官网说明： - Attach your device to your computer via cable and make sure that it shows in the adb devices list. - Go to the Build Settings (menu: File > Build Settings), enable the Development Buildcheckbox, and then select Build & Run - When the application launches on the device, open the Profiler window in the Unity Editor (menu: Window > Analysis > Profiler). - From the Attach to Player drop-down menu, select AndroidProfiler(ADB@127.0.0.1:34999). The entry in the drop-down menu is only visible when the selected target is Android.

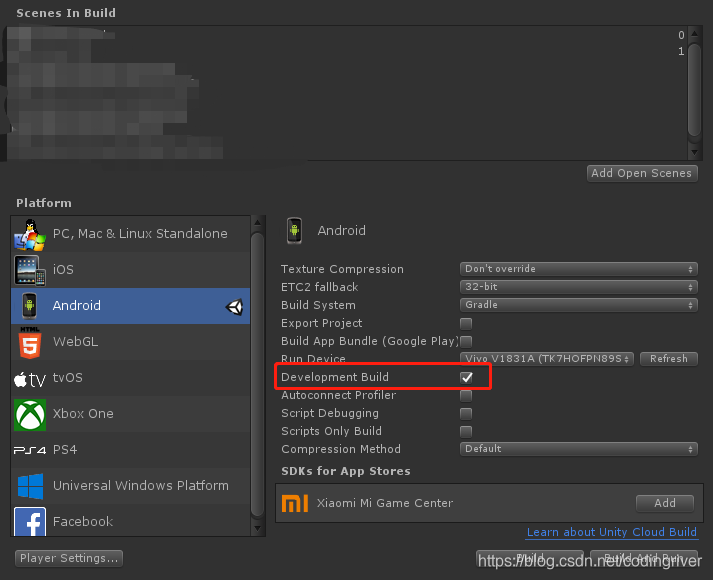

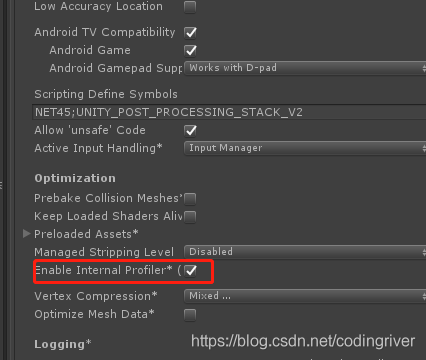

翻译后： - 打开手机调试模式 - 打开 Build Settings (menu: File > Build Settings)，勾选 Development Build - 打开Profiler (menu: Window > Analysis > Profiler). - 点击Attach to Player ，选择AndroidProfiler(ADB@127.0.0.1:34999) - 勾选Enable Internal Profiler (menu: File > Build Settings>Player Settings >Other Settings).

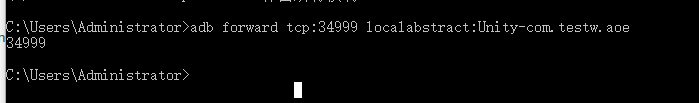

win系统打开cmd命令行，执行命令 adb forward tcp:34999 localabstract:Unity-{在此处插入 Bundle ID}
例如 adb forward tcp:34999 localabstract:Unity-com.test.aoc （将com.test.aoc替换成自己的Bundle ID，不是将冒号后面的替换）

执行该命令时必须打开unity且电脑连接android手机，手机处于调试模式

使用wifi连接

• Disable mobile data on your Android device.
• Connect your Android device to your WiFi network. The Profiler uses a local WiFi network to send profiling data from your device to the Unity Editor.
• Attach your device to your computer via cable. Go to the Build Settings (menu: File > Build Settings), enable the Development Build and Autoconnect Profiler checkboxes, then select Build & Run.
• When the application launches on the device, open the Profiler window in the Unity Editor (menu: Window > Analysis > Profiler). Build Settings 里，将 Development Build、Autoconnect Profiler、Script Debugging 打开。

查看端口占用

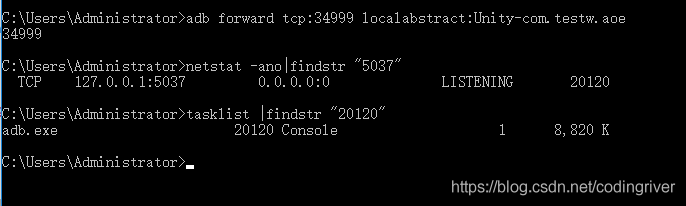

• netstat -ano|findstr 5037 去查找5037对应的端口号的进程id 也就是pid。
• tasklist |findstr 20120 查看进程名字。

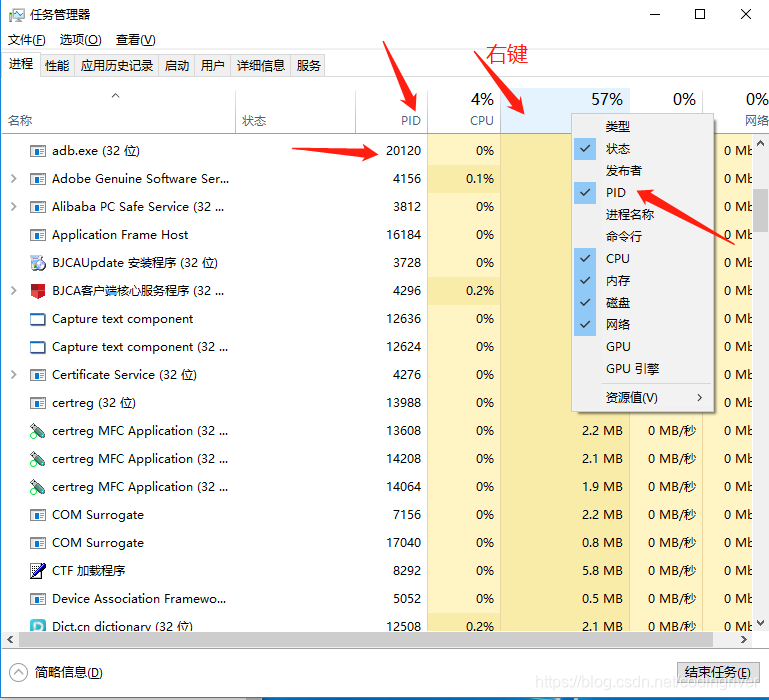

• 用任务管理器 查看进程pid对应的进程，然后结束进程（打开任务管理器后右键勾选PID显示pid）

如果进程有守护进程，干不掉，则参考文章 https://blog.csdn.net/aLLLiyyy/article/details/86555228，最后面会说怎么结束掉
