边缘光和流光特效

边缘光和流光特效

'''c Shader "Unlit/EdgeAndScan" { Properties { _MainTex ("Texture", 2D) = "white" {} _PowEmiss("Pow Emiss",float)=5 _RimMin("RimMin",Range(-1,1)) = 0.0 _RimMax("RimMax",Range(0,2)) = 1.0 _InnerColor("Inner Color",Color) = (0.0,0.0,0.0,0.0) _RimColor("Rim Color",Color) = (1,1,1,1) _RimIntensity("Rim Intensity",Float) = 1.0 _FlowTilling("Flow Tilling",Vector) = (1,1,0,0) _FlowSpeed("Flow Speed",Vector) = (1,1,0,0) _FlowTex("Flow Tex",2D) = "white"{} _FlowIntensity("Flow Intensity",Float) = 0.5 } SubShader { Tags { "Queue"="Transparent" } LOD 100

    Pass {
        //这个Pass不输出颜色，只是输出深度，透明会有问题，如果不处理深度
        //只是测试流光和边缘光可以删除该pass
        Cull Off
        ZWrite On
        ColorMask 0
        CGPROGRAM
        float4 _Color;
        #pragma vertex vert
        #pragma fragment frag

        float4 vert(float4 vertexPos : POSITION) : SV_POSITION
        {
            return UnityObjectToClipPos(vertexPos);
        }

        float4 frag(void) : COLOR
        {
            return _Color;
        }
        ENDCG
    }

    Pass
    {
        ZWrite Off
        Blend SrcAlpha One
        CGPROGRAM
        #pragma vertex vert
        #pragma fragment frag

        #include "UnityCG.cginc"

        struct appdata
        {
            float4 vertex : POSITION;
            float2 uv : TEXCOORD0;
            float3 normal: NORMAL;
        };

        struct v2f
        {
            float2 uv : TEXCOORD0;
            float4 vertex : SV_POSITION;
            float3 world_normal: TEXCOORD1;
            float3 world_pos: TEXCOORD2;
            float3 world_pivot:TEXCOORD3;

        };

        sampler2D _MainTex;
        float4 _MainTex_ST;
        float _RimMin;
        float _RimMax;
        float4 _InnerColor;
        float4 _RimColor;
        float _RimIntensity;
        float4 _FlowTilling;
        float4 _FlowSpeed;
        sampler2D _FlowTex;
        float _FlowIntensity;
        float _InnerAlpha;
        float _PowEmiss;
        v2f vert (appdata v)
        {
            v2f o;
            o.vertex = UnityObjectToClipPos(v.vertex);
            o.uv = TRANSFORM_TEX(v.uv, _MainTex);
            o.world_normal=normalize(mul(float4(v.normal,0.0),unity_WorldToObject).xyz);
            o.world_pos=mul(unity_ObjectToWorld,float4(v.vertex.xyz,1)).xyz;
            o.world_pivot=mul(unity_ObjectToWorld,float4(0,0,0,1)).xyz;
            return o;
        }

        fixed4 frag (v2f i) : SV_Target
        {
            //边缘光

            half3 world_normal=normalize(i.world_normal);
            float3 world_view=normalize(_WorldSpaceCameraPos.xyz-i.world_pos);
            float dotV=saturate(dot(world_normal,world_view));
            float fresnel=1-dotV;
            fresnel = smoothstep(_RimMin, _RimMax, fresnel);
            //用于增加细节，也可以不要
            half emiss = tex2D(_MainTex, i.uv).r;
            emiss = pow(emiss, _PowEmiss);
            float final_edge_alpha=saturate(emiss+fresnel);
            float3 final_edge_col=lerp(_InnerColor.xyz, _RimColor.xyz * _RimIntensity, final_edge_alpha);

            //流光
            float2 flow_uv=(i.world_pos.xy-i.world_pivot.xy)*_FlowTilling.xy;
            flow_uv=_Time.y*_FlowSpeed.xy+flow_uv;
            float4 flow_col=tex2D(_FlowTex,flow_uv)*_FlowIntensity;

            //合并
            float3 final_col=final_edge_col+flow_col.rgb;
            float final_alpha=saturate(final_edge_alpha+flow_col.a);
            return float4(final_col.rgb,final_alpha);
        }
        ENDCG
    }
}

}

'''

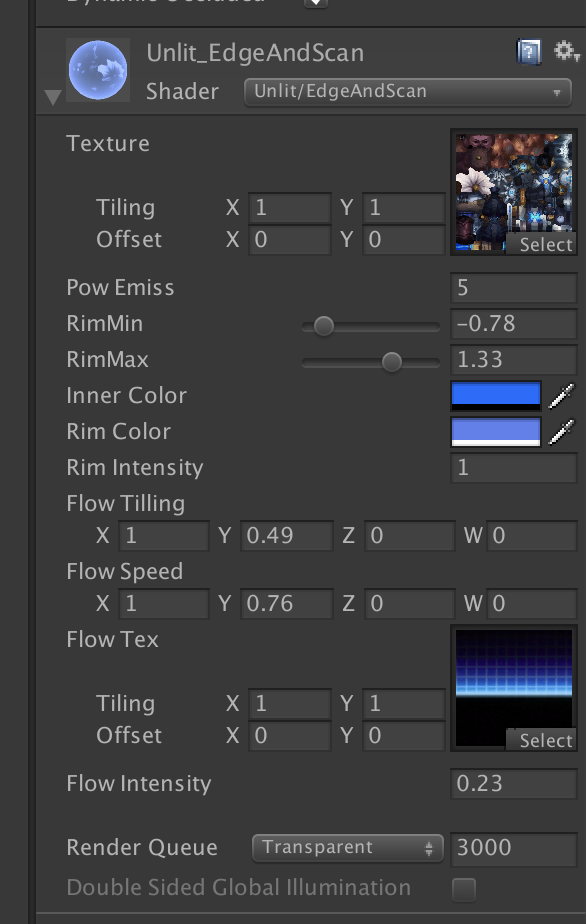

材质球属性：

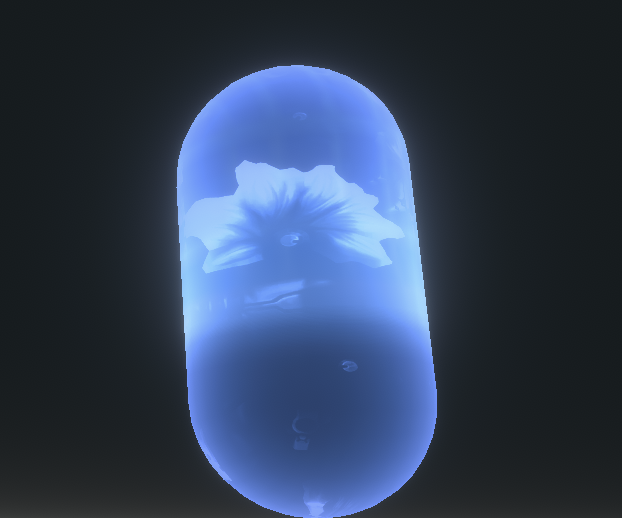

效果：
